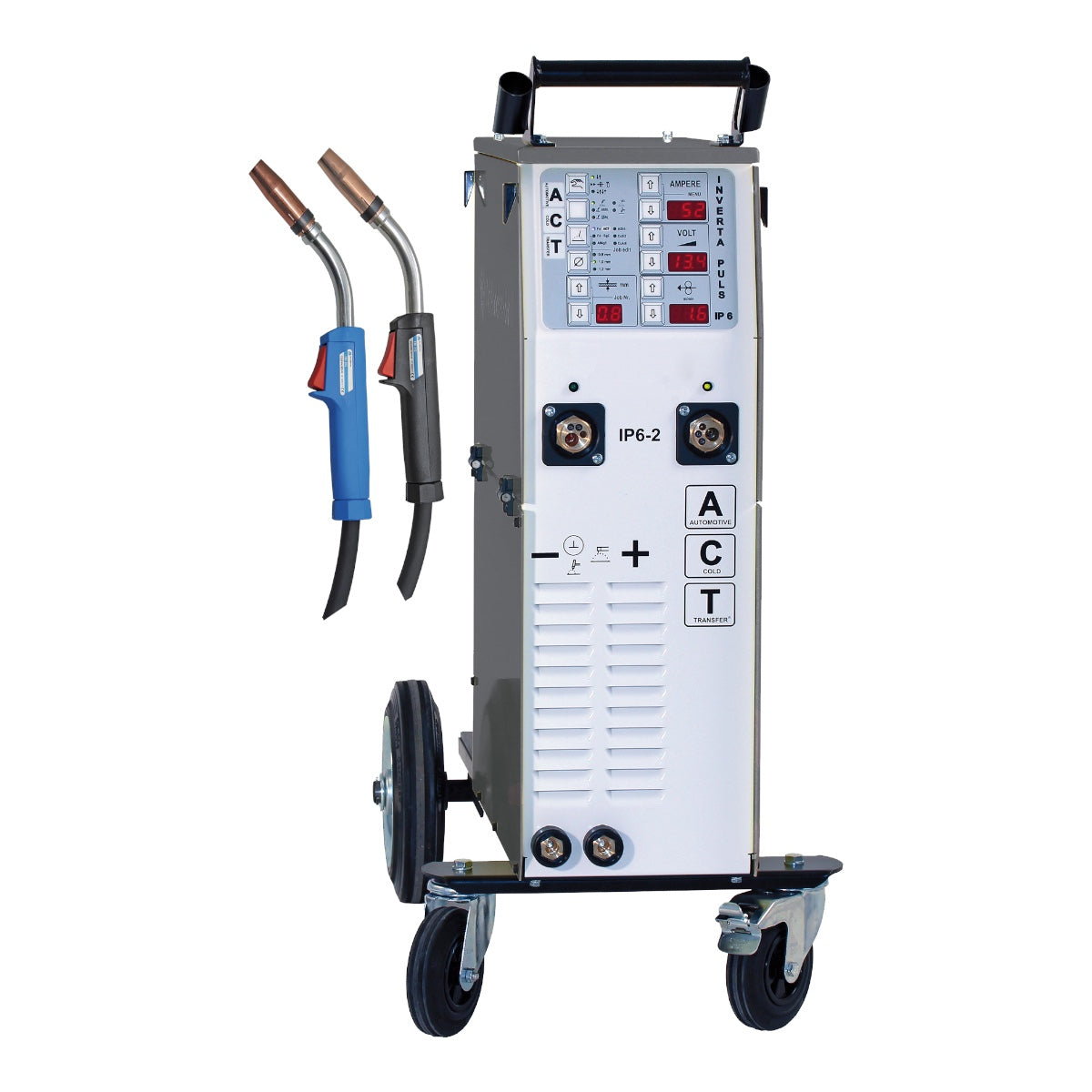

Inverter MIG-MAG system for body repair with ACT = Automotive Cold Transfer*
Steel - MIG soldering - TIG, 2 welding torches for 2 wires in 1 machine, outstanding thin sheet welding + soldering + aluminum, aluminum characteristics according to OEM specifications, all you have to do is set the sheet thickness - very user-friendly
Tested and approved by: Honda | Acura | Jaguar Land Rover | GM | GMC | Opel | Vauxhall | Cadillac | Buick | Chevrolet | Ford | Peugeot | Citroën | Renault | Dacia | Tesla Recommended by: Mercedes-Benz* | Maybach* | Smart
*Differentiation in appearance (color, labeling, etc.) and scope of delivery
*ACT = Low-energy short arc process Synergic parameters Lower heat input Very good gap bridging Less material distortion Automatic “hold function” of the welding parameters Saving individual welding programs Integrated interface for software updates
VE:
1 piece
Temperature range:
-40°C...+80°C
Gross weight:
73,500kg
Details:
Release: Daimler, TESLA
Weight net:
69kg, 73.50
Effectiveness:
85%
Open circuit voltage:
82V (MIG)
Power factor:
0.7
Conformity mark:
CE
Mains connection (Cu):
4x2.5mm²
Mains voltage:
3~400V (+/-10%)
Temperature operation:
-10°C...+40°C
Length x WIDTH X HEIGHT:
920x350x740mm
Protection class:
IP23
Backup:
16A
Minimum current intensity for pulse welding:
25 A
Scope of delivery: 1 × welding machine IP 6-2 including wheels 2 × set of DV rollers for steel 0.8/1.0 mm 1 × Steel hose package Force 200 with steel core 3 m Ø 0.8 mm 1 × MIG hose package Force 200 with plastic core 3 m Ø 1.0 mm 1 × ground cable, 5 m with clamp 1 × Pressure Gauge 1 × Double branch valve 1×User manual
I always strive for the best product quality for my customers.
